Description

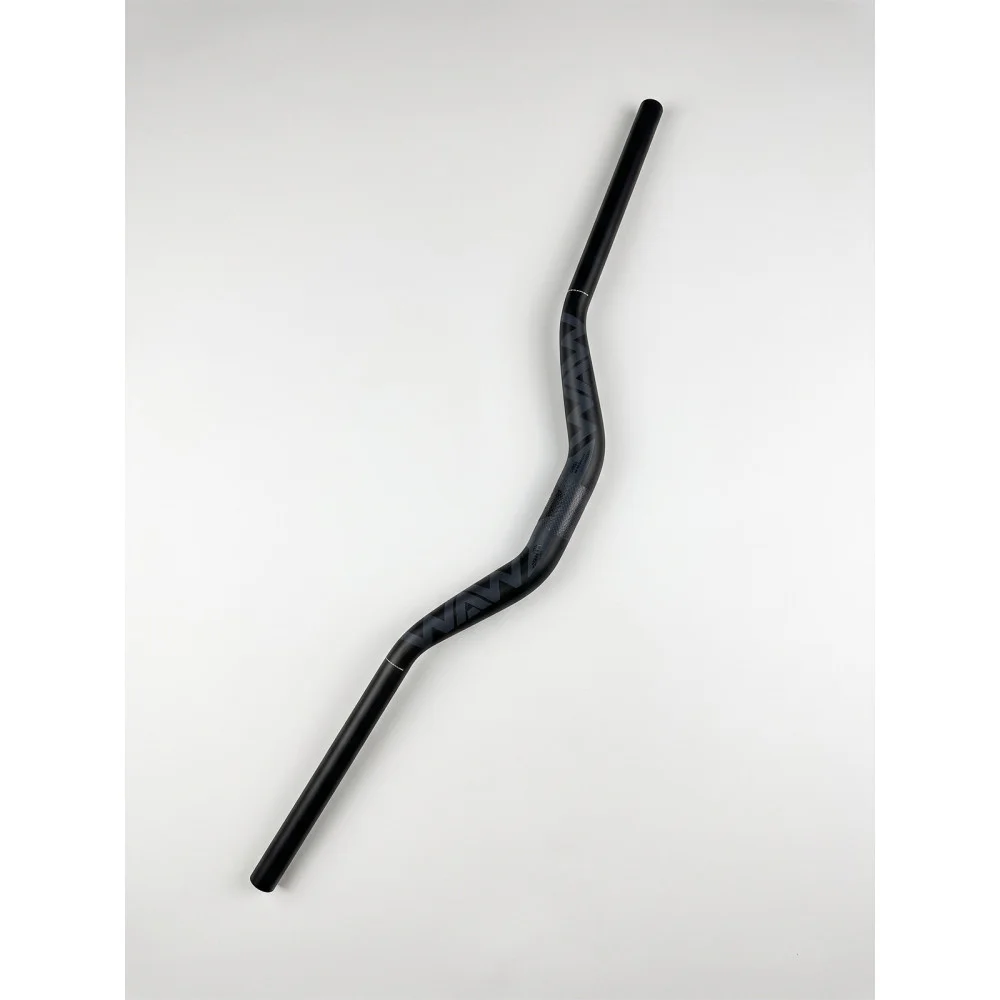

- trial carbon handlebars WAW ULTIMATE model 102
- made of high modulus UD carbon with extreme strength
- these handlebars are fitted as standard on CREWKERZ Jealousy ULTIMATE wheels
- 720mm length is a good choice for almost all disiplines and riding styles
- handlebars can be shortened to a shorter length if required
- 31.8mm handlebar centre for a firm attachment to the stem
- roughened surface for attachment to the stem to prevent twisting
- taller handlebars give more room in the rear wheel stance for a more stable and natural body position
Dimensions and weight
- lenght: 720mm
- height: 102mm
- diameter in the middle: 31,8mm
- upsweep: 8°
- backsweep: 9°
- weight: 199g
The individual values of the handlebar geometry are explained in the figure:
Be aware
- when fitting the handlebars to the stem and installing the brakes, be careful not to damage the surface of the handlebars on the stem edge or on the lever clamps
- when installing brake levers, we recommend using carbon paste to increase friction between the handlebars and levers
- handlebar clamps must be tightened to a maximum of 6Nm
- brake levers must be tightened to a maximum of 5Nm
